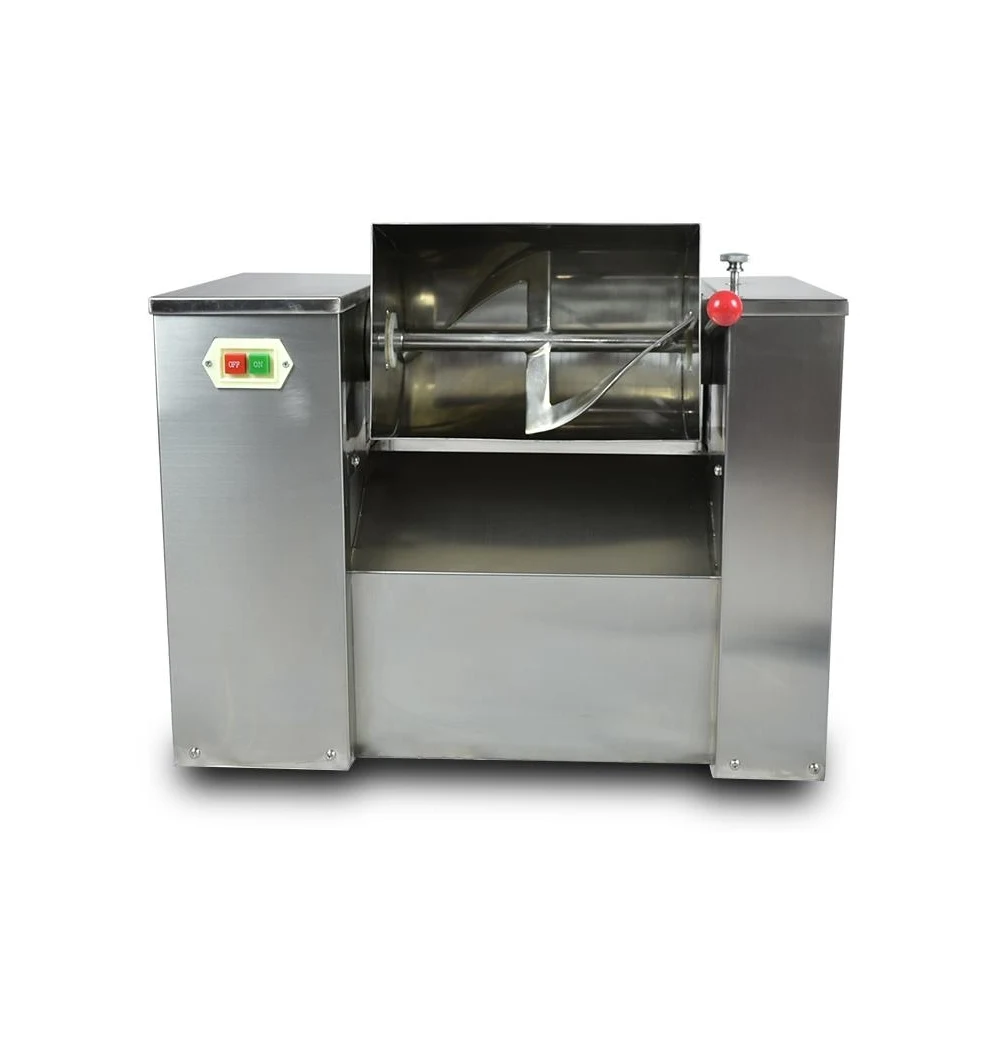

CH Trough Mixer
A horizontal trough mixer for powders or paste-like materials, with stainless-steel material-contact components.
Final configuration, availability and delivery terms are confirmed with your quotation.
A horizontal trough mixer for powders or paste-like materials, with stainless-steel material-contact components.
Technical specifications
| CH100 catalog capacity | 100 kg |
|---|---|
| CH100 spindle speed | 24 rpm |
| CH100 mixing cycle | 5–20 min |
| CH100 main motor | 2.2 kW |
| CH100 dump motor | 0.75 kW |
| CH100 net weight | 250 kg |
| CH100 dimensions | 1,100 × 440 × 900 mm |
Source: product catalog, PDF page 32. Catalog figures are reference values; actual output depends on material and configuration.
What should I include in my quotation request?
Share your material, target output, dosage size and shape, power supply, destination country and any tooling or documentation requirements.
Will this configuration suit my process?
Suitability depends on your material, formulation and operating conditions. Ask for a configuration review and clarify any sample testing or documentation needed before ordering.
