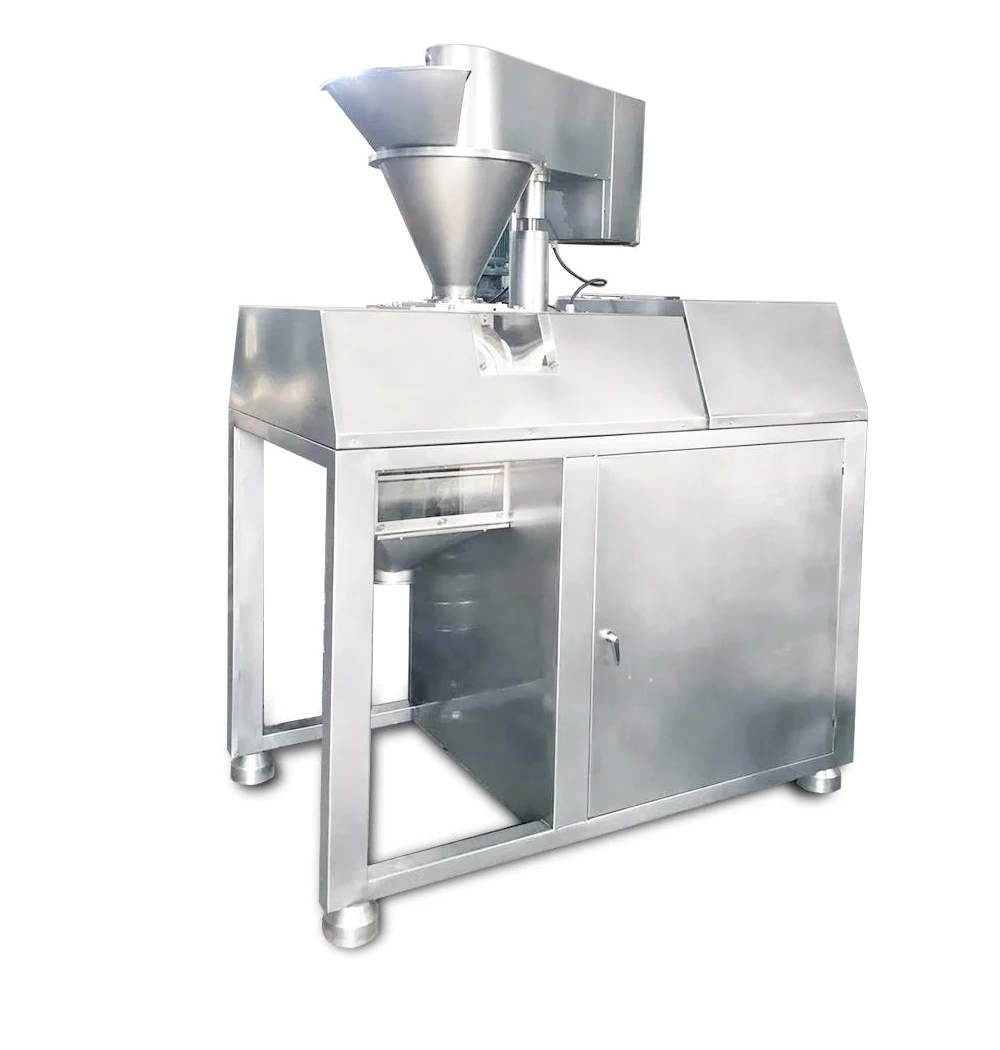

GK-25 Dry Granulator
Roll-based dry granulation for powders, without adding a wetting agent or a secondary drying step.
Final configuration, availability and delivery terms are confirmed with your quotation.
Roll-based dry granulation for powders, without adding a wetting agent or a secondary drying step.
Technical specifications
| Catalog output | 2–10 kg/h |
|---|---|
| Roll size | 200 × 25 mm |
| Roll speed | 2–20 rpm |
| Feed speed | 6–60 rpm |
| Roller drive motor | 2 kW |
| Feed drive motor | 1 kW |
| Net weight | 500 kg |
Source: product catalog, PDF page 36. Catalog figures are reference values; actual output depends on material and configuration.
What should I include in my quotation request?
Share your material, target output, dosage size and shape, power supply, destination country and any tooling or documentation requirements.
Will this configuration suit my process?
Suitability depends on your material, formulation and operating conditions. Ask for a configuration review and clarify any sample testing or documentation needed before ordering.
