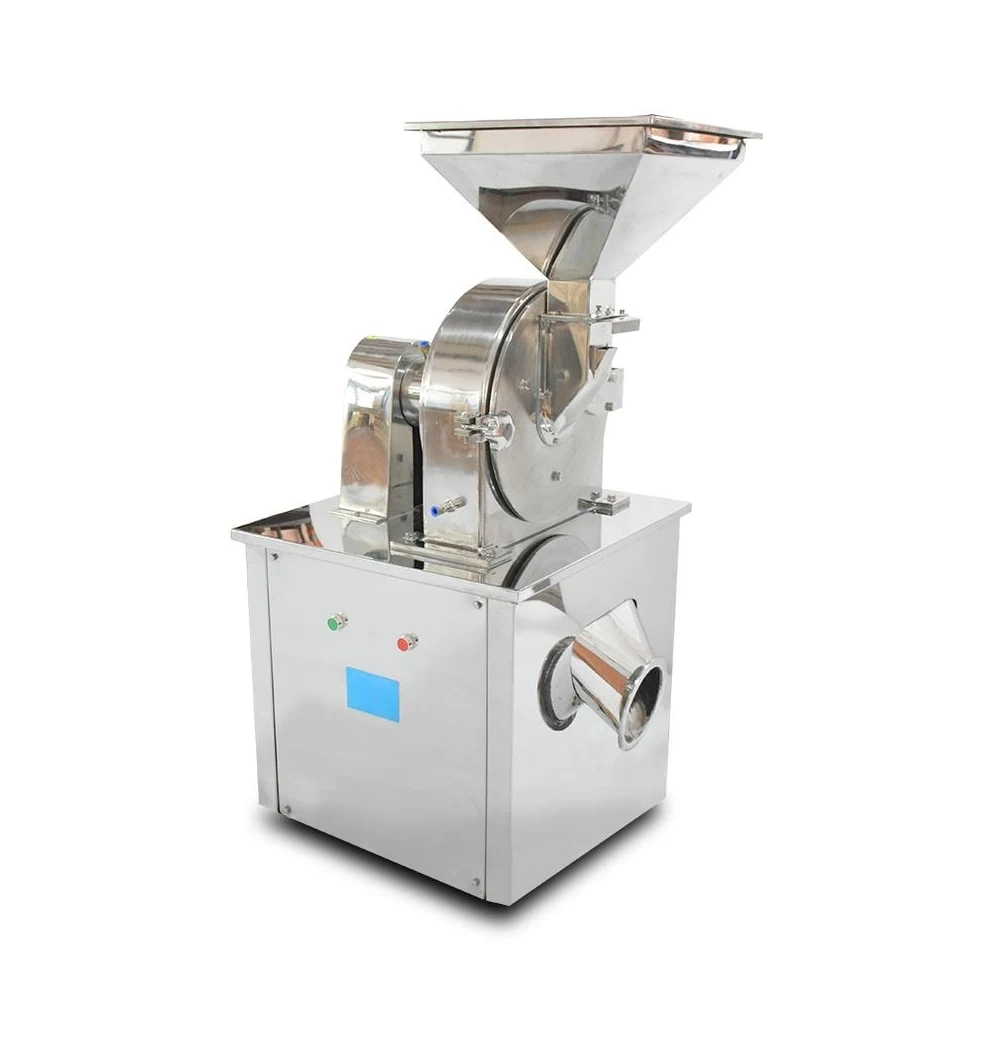

SF Universal Pulverizer
A stainless-steel grinder using fixed and moving toothed discs. Interchangeable screens control the finished particle size.
Final configuration, availability and delivery terms are confirmed with your quotation.
A stainless-steel grinder using fixed and moving toothed discs. Interchangeable screens control the finished particle size.
Technical specifications
| Models | 130B / 180B / 250B / 320B |
|---|---|
| Catalog output | 2–5 / 10–30 / 50–250 / 80–300 kg/h, respectively |
| Spindle speed | 7,000 / 7,000 / 5,000 / 4,000 rpm, respectively |
| Motor power | 1.1 / 2.2 / 5.5 / 7.5 kW, respectively |
| Fineness | 10–120 mesh |
| Net weight | 75 / 85 / 220 / 250 kg, respectively |
Source: product catalog, PDF page 27. Catalog figures are reference values; actual output depends on material and configuration.
What should I include in my quotation request?
Share your material, target output, dosage size and shape, power supply, destination country and any tooling or documentation requirements.
Will this configuration suit my process?
Suitability depends on your material, formulation and operating conditions. Ask for a configuration review and clarify any sample testing or documentation needed before ordering.
